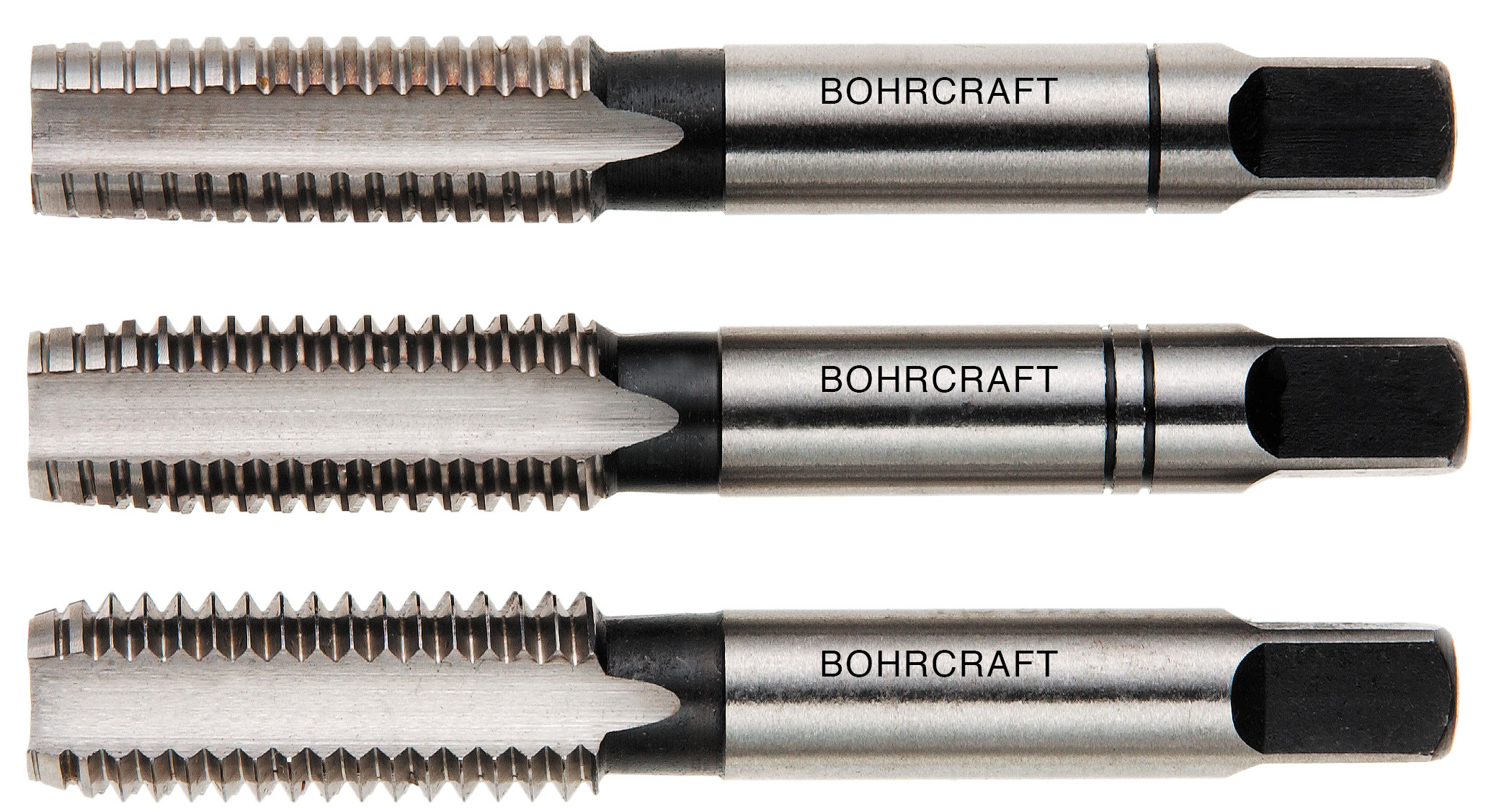

Hand Taps DIN 352 HSS-G • M

Hand Taps DIN 352 HSS-G • M

Product number: 41001100000

· For cutting metric ISO-Thread DIN 13 · For through- and blind holes · No. 1 Taper 6 – 8 pitch chamfer · No. 2 Second 4 – 5 pitch chamfer · No. 3 Plug 2 – 3 pitch chamfer

· For cutting metric ISO-Thread DIN 13 · For through- and blind holes · No. 1 Taper 6 – 8 pitch chamfer · No. 2 Second 4 – 5 pitch chamfer · No. 3 Plug 2 – 3 pitch chamfer
Bohrcraft tools GmbH & Co. KG
Order No. Content Pieces Thread L (mm) Overall L (mm) Ø (mm) PU
41001100200 M 2 3 pcs. 8 36 2,8 1
41001100250 M 2,5 3 pcs. 40 9 2,8 1
41001100300 M 3 3 pcs. 40 11 3,5 1
41001100350 M 3,5 3 pcs. 45 13 4 1
41001100400 M 4 3 pcs. 45 13 4,5 1
41001100500 M 5 3 pcs. 50 16 6 1
41001100600 M 6 3 pcs. 50 19 6 1
41001100700 M 7 3 pcs. 50 19 6 1
41001100800 M 8 3 pcs. 56 22 6 1
41001100900 M 9 3 pcs. 63 22 7 1
41001101000 M 10 3 pcs. 70 24 7 1
41001101200 M 12 3 pcs. 75 29 9 1
41001101400 M 14 3 pcs. 30 80 11 1
41001101600 M 16 3 pcs. 80 32 12 1
41001101800 M 18 3 pcs. 95 40 14 1
41001102000 M 20 3 pcs. 95 40 16 1
41001102200 M 22 3 pcs. 100 40 18 1
41001102400 M 24 3 pcs. 110 50 18 1
41001102700 M 27 3 pcs. 110 50 20 1
41001103000 M 30 3 pcs. 125 56 22 1
41001103300 M 33 3 pcs. 125 56 25 1
41001103600 M 36 3 pcs. 150 63 25 1
